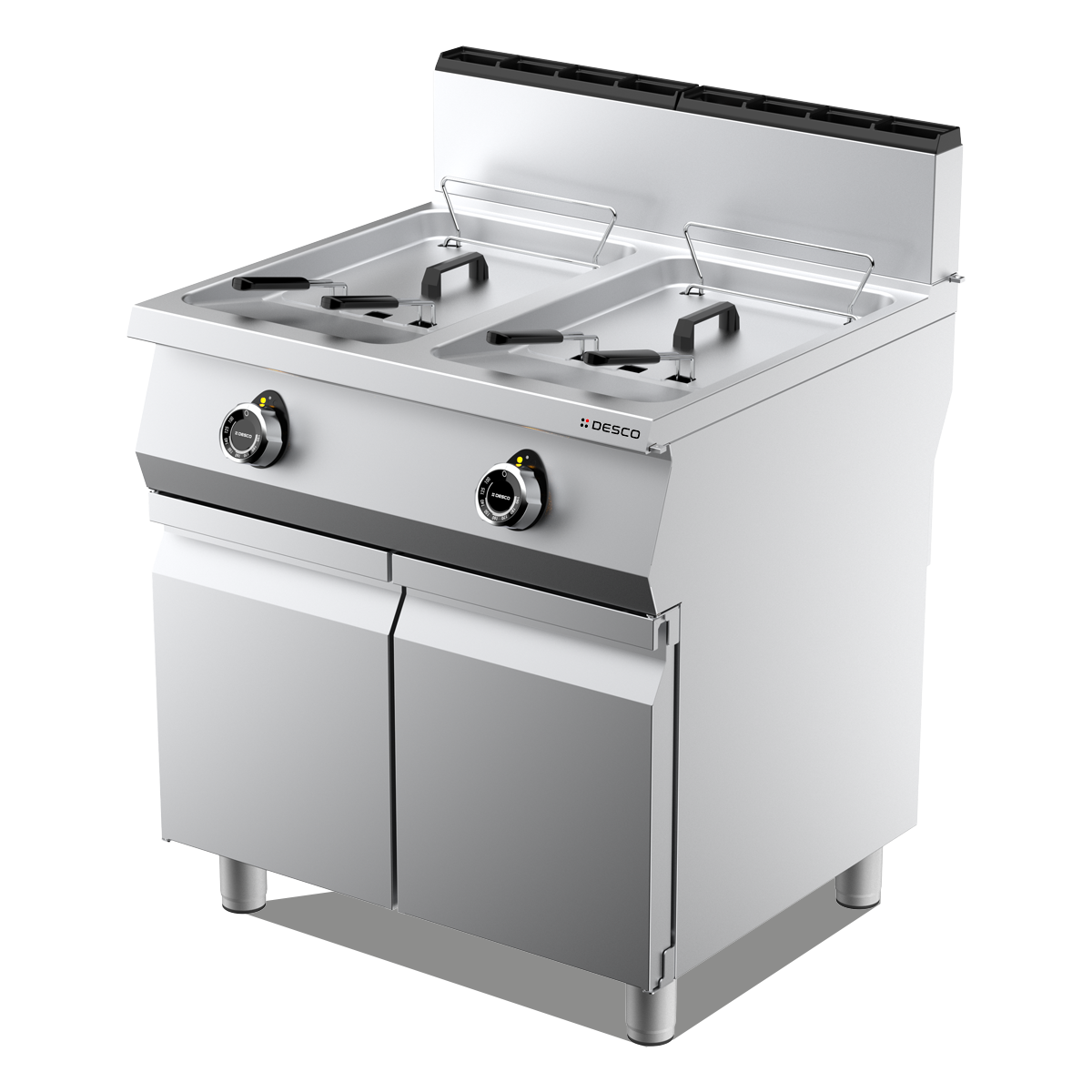

15+15L GAS FRYER
Codice
72FRGMD
72FRGMD-60
TOP with deep-drawn AISI 304 stainless steel tank with rounded edges for easier cleaning and wide foaming area.
HEATING by burners and stainless steel pipes inside the tanks, with a total power of 28kW, adjustable through a SIT 820 valve. Tank temperature adjustable through a working thermostat and an ergonomic control knob.
IGNITION with electronic igniter.
SAFETY guaranteed by flame control via SIT 820 valve, operating thermostat and safety thermostat.
OUTFITTING including filter, basket, tank lid and oil collection tray.
| Gas data | |
|---|---|
| G20 (m³/h) | 2,963 |
| G30 (kg/h) | 2,208 |
| G31 (kg/h) | 2,175 |
| Power (kW) | 28 |
| Specific power (W/L) | 941 |
| Technical data | |
|---|---|
| Dimensions WxDxH (mm) | 800 x 746 x 900 |
| Min – max temperature (°C) | 90 - 190 |
| Number of tanks | 2 |
| Tank dimensions (mm) | 308 x 336 x 275 (x2) |
| Tank capacity (L) | 13,6 / 15 + 13,6 / 15 |
| Control | SIT 820 |
Dimensions WxDxH (mm)
Min – max temperature (°C)
Number of tanks
Tank dimensions (mm)
Tank capacity (L)
Control
| Electrical data | |
|---|---|
| Power supply voltage (V) | 220-240V 1N~ |
| Power frequency (Hz) | 50 |
Power supply voltage (V)
Power frequency (Hz)
| Optional | |
|---|---|
| Power supply voltage (V) | 220-240V 1N~ |
| Power frequency (Hz) | 60 |
Accessori
KFR0010
15L FRYER BASKET
KFR0020
1/2 BASKET FOR 15L FRYER
KFR0210
15L BASKET SUPPORT GRID
KFR0040
FRYER LID
KFR0340
OIL COLLECTION TRAY
