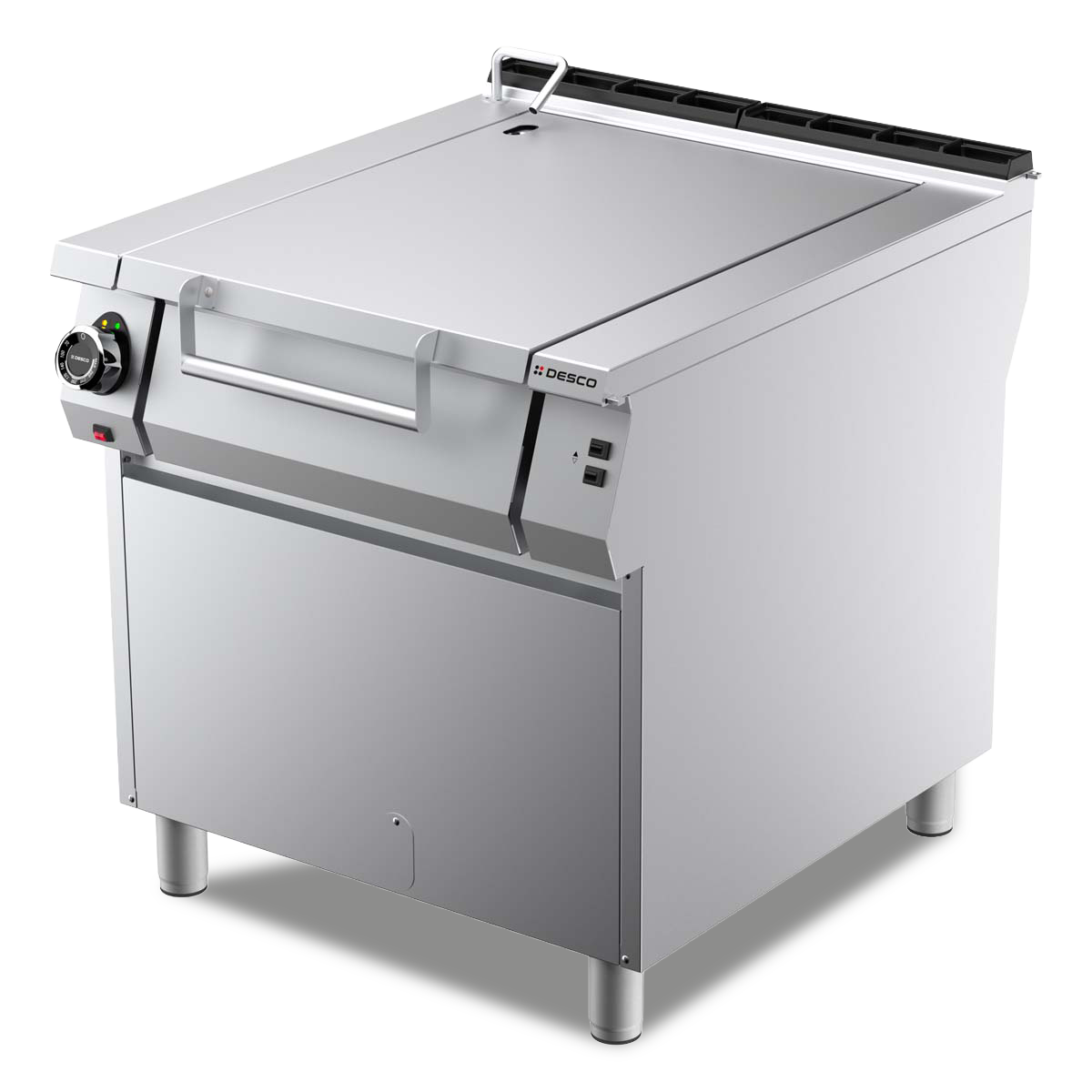

ELECTRIC BRATT PAN 60L

ELECTRIC BRATT PAN 60L

Alimentazione ele
ELECTRIC BRATT PAN 60L
900

ELECTRIC BRATT PAN 60L

Codice 92BREMA

TOP with AISI 304 stainless steel tank and flush-to-top lid. Balanced AISI 304 lid equipped with an ergonomic handle. Outer cladding in finely satin-finished AISI 304. Adjustable AISI 304 stainless steel feet for levelling.
CONTROL PANEL equipped with electromechanical thermostat for temperature setting. Manual tap for tank filling. Manual tilting and return of the cooking vessel.
HEATING by armored heating elements in INCOLOY-800 alloy. Thermostat for temperature adjustment from 45°C to 300°C. Safety thermostat in case of abnormal operation. Water inlet into the tank via tap and delivery pipe fixed on the chimney. Heating cut-off during tank tilting.
VISUAL indicator heating in operation. Indicator light showing machine powered on.
SAFETY provided by heating cut-off in case of overheating with manual reset safety thermostat.

Technical data
Dimensions WxDxH (mm) 800 x 900 x 900
Number of tanks 1
Tank dimensions WxDxH (mm) 698 x 564 x 200
Capacity (L) 60
Water pressure (kPa) 50÷300
Cold water (B) 1/2“
Bottom surface (dm²) 39
Weight (kg) 154
Electrical data
Power (kW) 10
Power supply voltage (V) 380-415V 3N~
Power frequency (Hz) 50 - 60
Absorption (A) 15,1
