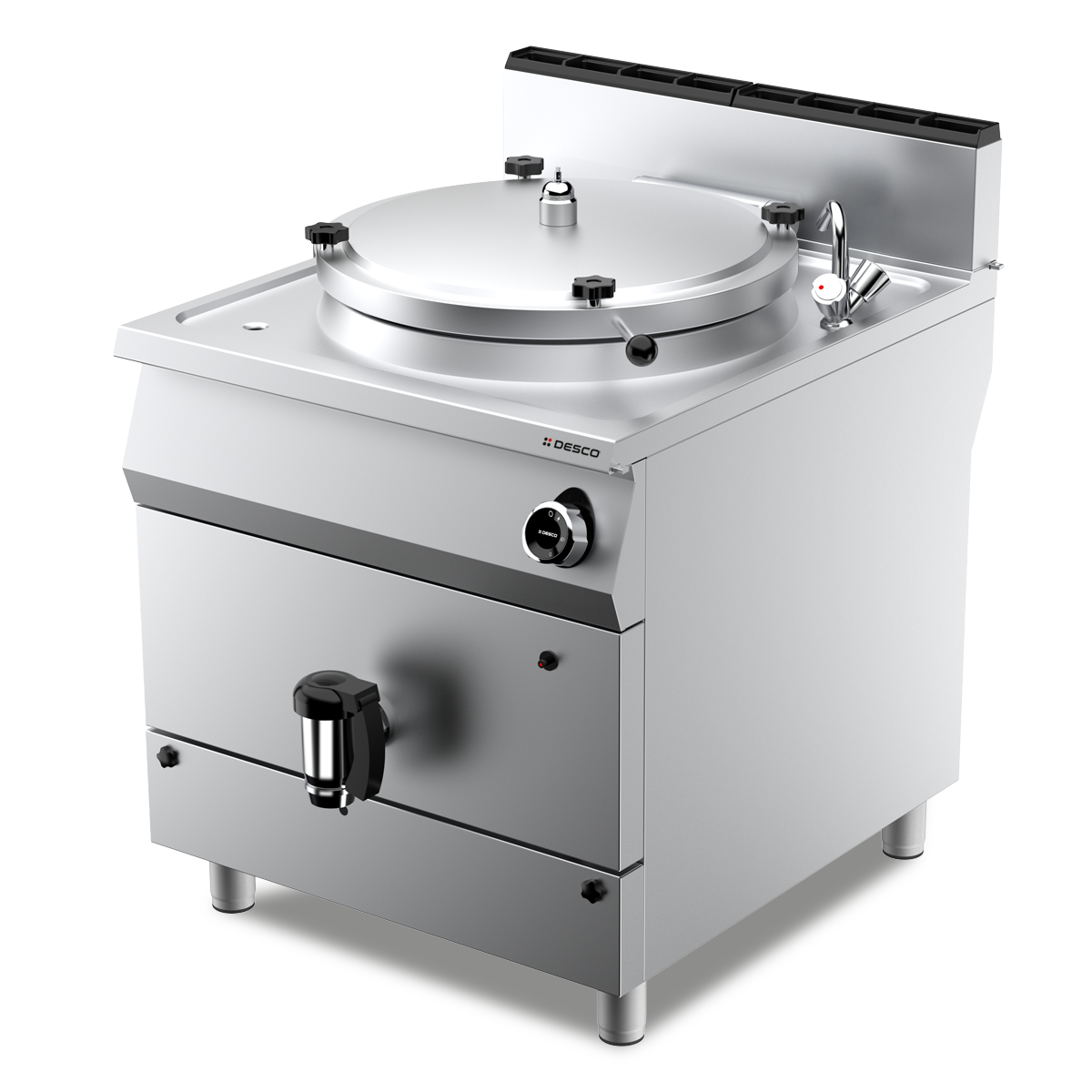

142L DIRECT HEATING BOILING PAN
Codice
92PNGMH
TANK, cylindrical cooking, 142 liters with AISI 316 bottom and AISI 304 walls. Supporting structure in stainless steel and external cladding in finely satin-finished AISI 304. Adjustable AISI 304 stainless steel feet for leveling. Spring-loaded lid for easy opening and equipped with an athermic handle.
HEATING indirect. Pressure cooking at 0,05 bar via airtight lid closure with clamp system.
MIXER TAP (hot/cold water) for tank filling. Temperature adjustment with min/max tap. Front tap for tank drainage.
SAFETY guaranteed by lid safety valve set to 0.05 bar.
| Gas data | |
|---|---|
| Gas connection (G) | Ø 1/2” ISO R7 |
| Gas power (kW) | 21 |
| Technical data | |
|---|---|
| Dimensions WxDxH (mm) | 800 x 900 x 1110 |
| Number of tanks | 1 |
| Tank diameter (mm) | Ø 600 |
| Tank height (mm) | 540 |
| Capacity (L) | 142 |
| Heating | direct |
| Autoclave pressure (bar) | 0,05 |
| Net weight (kg) | 123 |
| Water connection | |
|---|---|
| Water pressure (kPa) | 50÷300 |
| Cold water (B) | Ø 10 mm |
| Hot water (A) | Ø 10 mm |
