Alimentazione
gas
900

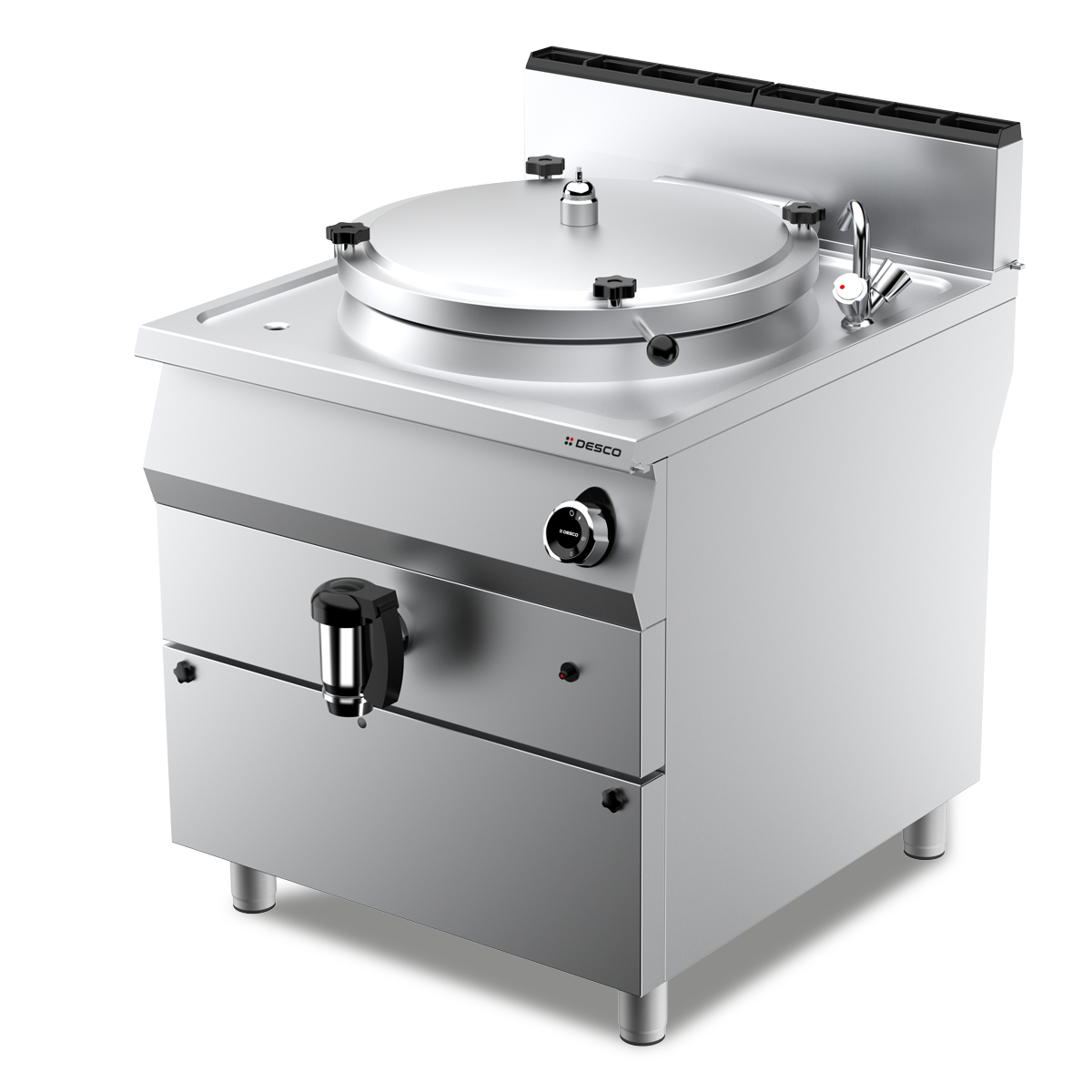

106L DIRECT HEATING BOILING PAN
Codice
92PNGMF
TANK, cylindrical cooking vessel with 106 litres capacity, AISI 316 bottom and AISI 304 walls. Load-bearing structure in stainless steel and external cladding in finely satin-finished AISI 304. Adjustable AISI 304 stainless steel feet for levelling. Spring-loaded lid for easy opening, equipped with heat-resistant handle.
HEATING indirect. Pressure cooking at 0,05 bar via airtight lid closure with clamp system.
MIXER TAP (hot/cold water) for tank filling. Temperature adjustment with min/max tap. Front tap for tank drainage.
SAFETY guaranteed by lid safety valve set to 0.05 bar.
| Gas data | |
|---|---|
| Gas connection (G) | Ø 1/2” ISO R7 |
| Gas power (kW) | 21 |
| Technical data | |
|---|---|
| Dimensions WxDxH (mm) | 800 x 900 x 1110 |
| Number of tanks | 1 |
| Tank diameter (mm) | Ø 600 |
| Tank height (mm) | 415 |
| Capacity (L) | 106 |
| Heating | direct |
| Autoclave pressure (bar) | 0,05 |
| Net weight (kg) | 115 |
| Water connection | |
|---|---|
| Water pressure (kPa) | 50÷300 |
| Cold water (B) | Ø 10 mm |
| Hot water (A) | Ø 10 mm |
