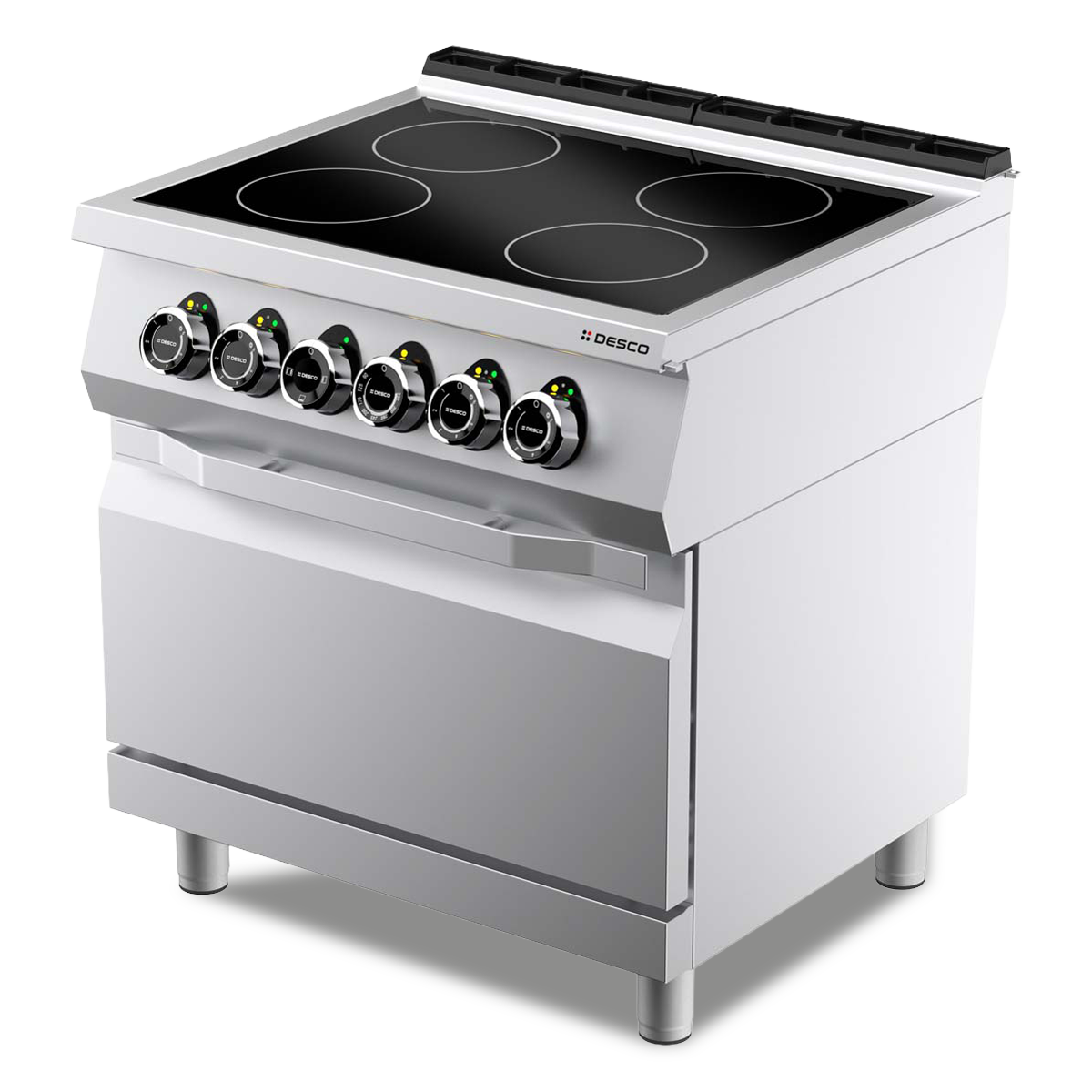

INFRARED KITCHEN RANGE 4P + ELT OVEN 2/1
Codice
72IREMA
COOKING TOP in vitroceramic.
HEATING by infrared with cooking power of 4 x 2,5kW adjustable via energy regulator and ergonomic knob. Separate controls for each zone.
SAFETY guaranteed by a thermal protection integrated in the elements.
ELECTRICAL OVEN
UNIT made of stainless steel with rounded corners to facilitate cleaning and hygiene. Door gasket applied to the body to ensure better heat retention inside the unit. Removable grid racks and bottom for easier cleaning.
HEATING with upper and lower heating element.
SAFETY guaranteed by temperature control via operating thermostat and safety limiter.
OVEN GRID, chromed, supplied.
| Technical data oven | top | |
|---|---|
| Dimensions WxDxH (mm) | 800 x 746 x 900 |
| Plate dimensions (mm) | Ø 230 (x4) |
| Plate power (kW) | 2,5 (x4) |
| Oven dimensions WxDxH (mm) | 696 x 565 x 290 |
| Oven power (kW) | 5,4 |
| Electrical data | |
|---|---|
| Power (kW) | 15,4 |
| Power supply voltage (V) | 380-415V 3N~ / 220-240V 3~ |
| Power frequency (Hz) | 50 - 60 |
| Absorption (A) | 23,5 / 39,2 |
