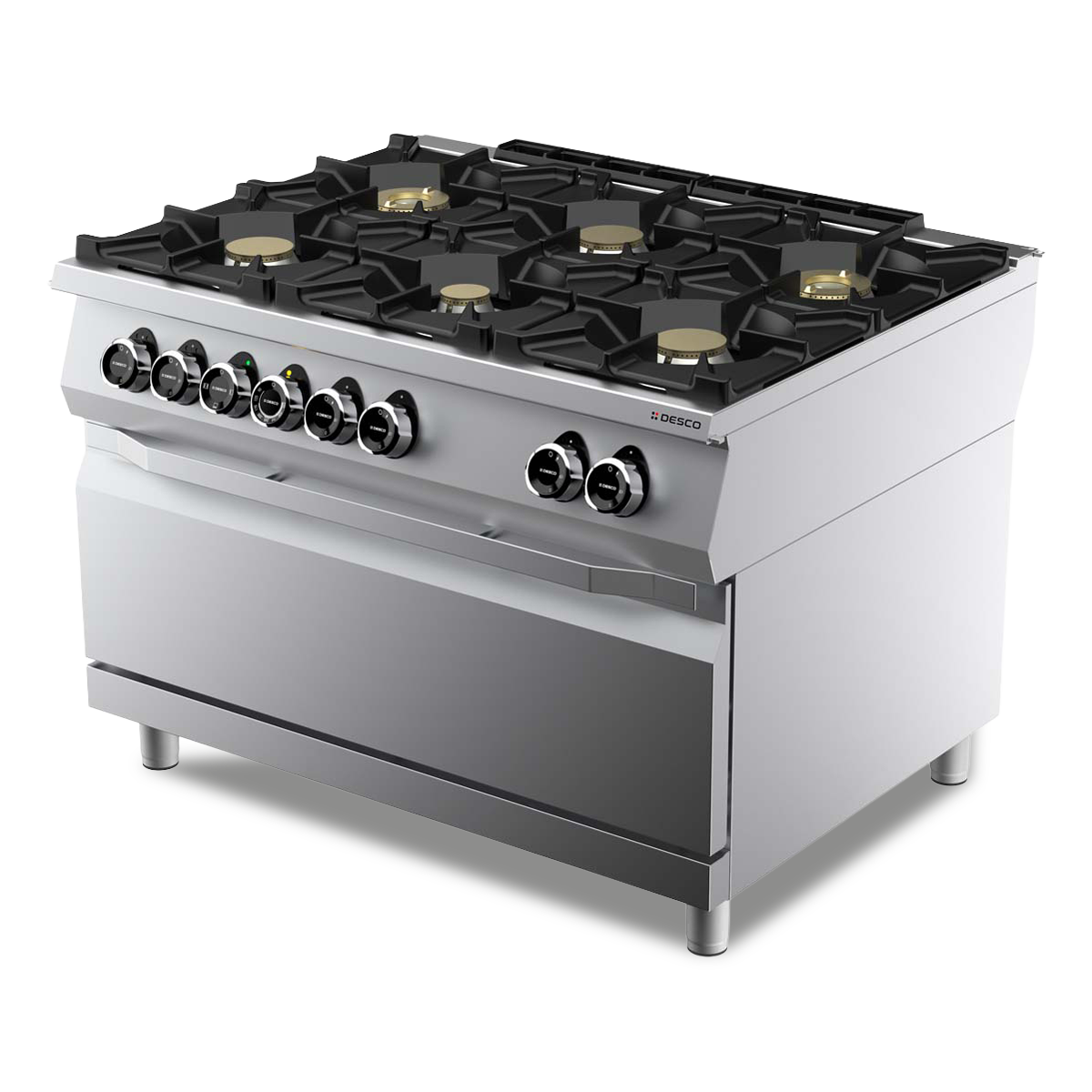

GAS KITCHEN RANGE 6 BURNERS + ELT OVEN MAXI

GAS KITCHEN RANGE 6 BURNERS + ELT OVEN MAXI

Alimentazione gas
GAS KITCHEN RANGE 6 BURNERS + ELT OVEN MAXI
900

GAS KITCHEN RANGE 6 BURNERS + ELT OVEN MAXI

Codice 93FAEMC

COOKING TOP pressed stainless steel with rounded corners and removable trays for easy cleaning and hygiene.
HEATING by cast iron burners with double-ring brass flame spreaders. Cooking power of 3,5kW, 5kW and 8kW adjustable from maximum to minimum via ergonomic knob.
IGNITION with pilot flame.
SAFETY guaranteed by direct flame control via tap with thermocouple.
SUPPORT GRIDS in matte enamelled cast iron RAAF resistant to alkalis, acids and fire.
MAXI ELECTRICAL OVEN
UNIT made of stainless steel with rounded corners to facilitate cleaning and hygiene. Door gasket applied to the body to ensure better heat retention inside the unit. Removable grid racks and bottom for easier cleaning.
HEATING with upper and lower heating elements.
SAFETY guaranteed by temperature control via operating thermostat and safety limiter.
OVEN GRID, chromed, supplied.

Gas data
G20 (m³/h) 3,9
G30 (kg/h) 2,96
G31 (kg/h) 2,91
Technical data oven | top
Dimensions WxDxH (mm) 1200 x 946 x 900
Oven dimensions WxDxH (mm) 1096 x 565 x 290
Temperature control (°C) 90 - 330
Oven power (kW) 7,2
Electrical data
Power (kW) 7,2
Power supply voltage (V) 380-415V 3N~ / 220-240V 3~
Power frequency (Hz) 50 - 60
Absorption (A) 15,7 / 27,1
Burner data
Burner A 8 – 3,5 - 5
Burner B 3,5 – 5 - 8
Burner C 8 – 3,5 - 5
Burner D 5 – 3,5 - 8
Burner E 8 – 3,5 - 5
Burner F 5 – 3,5 - 8
Power 37,5 – -
