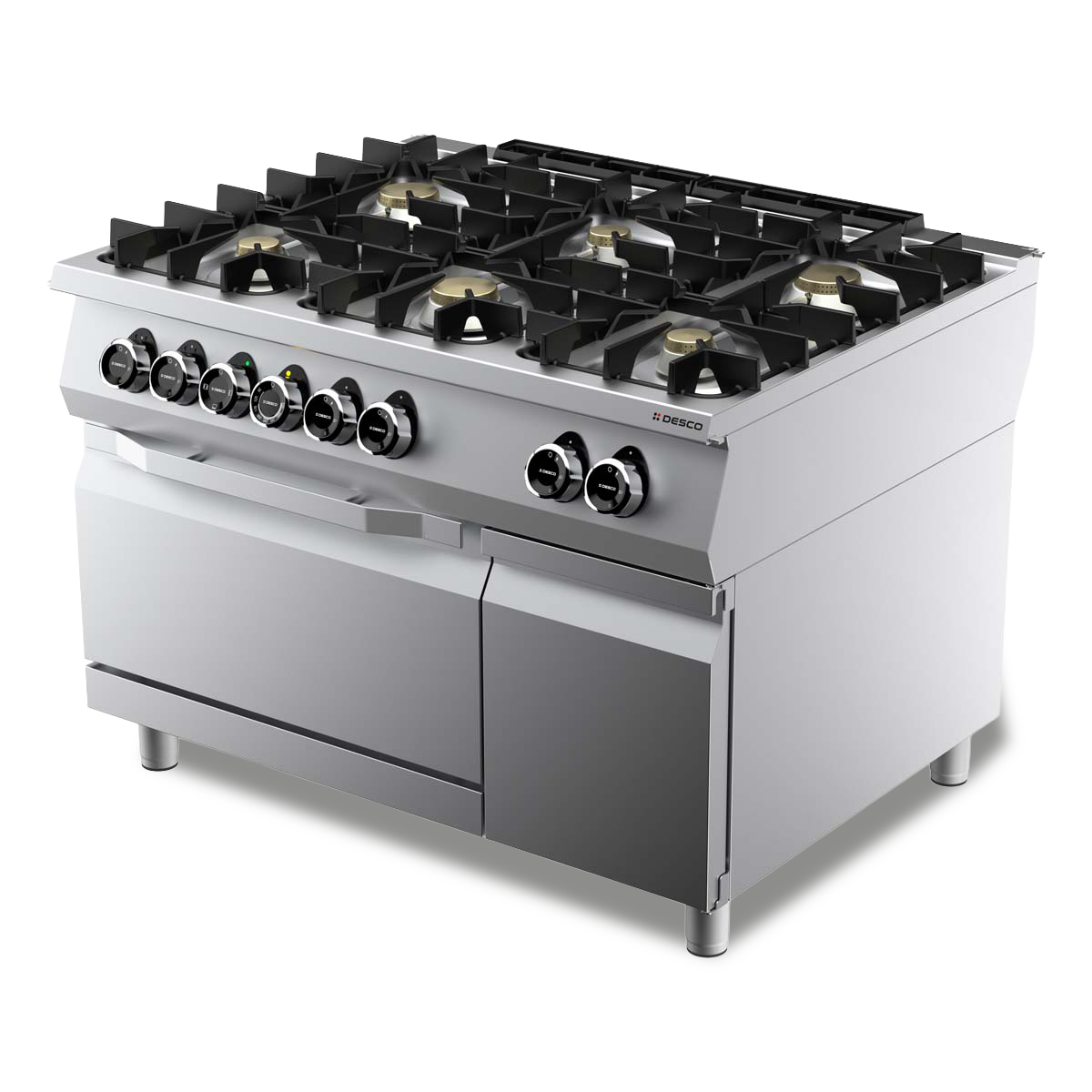

GAS KITCHEN RANGE 6 BURNERS + ELT OVEN 2/1

GAS KITCHEN RANGE 6 BURNERS + ELT OVEN 2/1

Alimentazione gas
GAS KITCHEN RANGE 6 BURNERS + ELT OVEN 2/1
900

GAS KITCHEN RANGE 6 BURNERS + ELT OVEN 2/1

Codice 93FEEMA

TOP, hermetically sealed cooking top made of stamped stainless steel with rounded corners for easier cleaning and improved hygiene.
HEATING by cast iron burners with double-ring brass flame spreaders. Cooking power of 3 x 6kW and 3 x 10kW (8kW optional) adjustable from maximum to minimum via ergonomic knob.
IGNITION with pilot flame.
SAFETY guaranteed by direct flame control via tap with thermocouple.
SUPPORT GRIDS in matte enamelled cast iron RAAF resistant to alkalis, acids and fire. Optional in stainless steel.
ELECTRICAL OVEN
UNIT made of stainless steel with rounded corners to facilitate cleaning and hygiene. Door gasket applied to the body to ensure better heat retention inside the unit. Removable grid racks and bottom for easier cleaning.
HEATING with upper and lower heating element.
SAFETY guaranteed by temperature control via operating thermostat and safety limiter.
OVEN GRID, chromed, supplied.

Gas data
G20 (m³/h) 5,079
G30 (kg/h) 3,194
G31 (kg/h) 3,146
Technical data oven | top
Dimensions WxDxH (mm) 1200 x 946 x 900
Oven dimensions WxDxH (mm) 696 x 565 x 290
Temperature control (°C) 90 - 330
Oven power (kW) 5,4
Electrical data
Power (kW) 5,4
Power supply voltage (V) 380-415V 3N~ / 220-240V 3~
Power frequency (Hz) 50 - 60
Absorption (A) 15,7 / 20,7
Burner data
Burner A 6 – 8 - 10
Burner B 10 – 6 - 8
Burner C 10 – 6 - 8
Burner D 6 – 8 - 10
Burner E 6 – 8 - 10
Burner F 10 – 6 - 8
Power 48 – -
