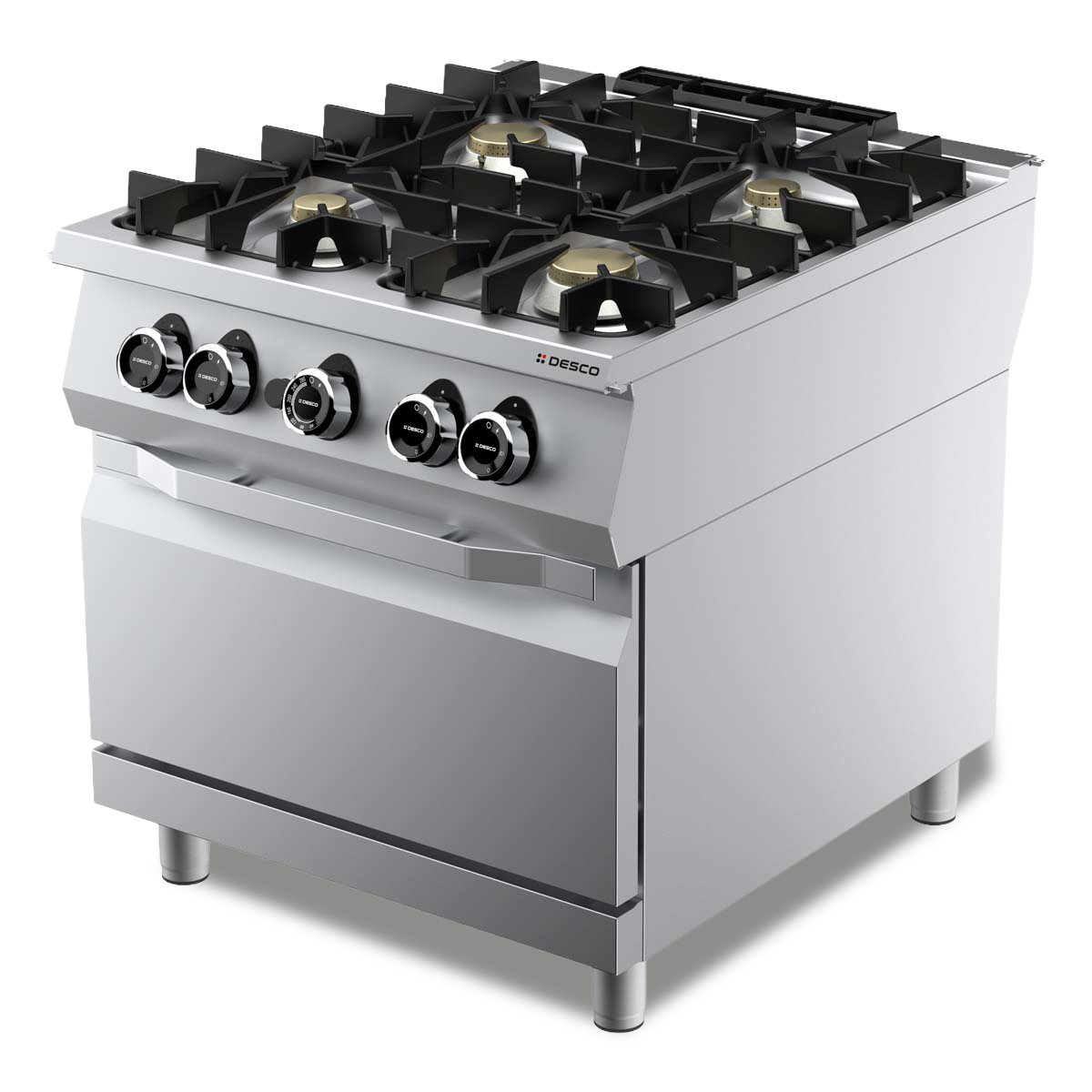

GAS KITCHEN RANGE 4 BURNERS + GAS OVEN 2/1

GAS KITCHEN RANGE 4 BURNERS + GAS OVEN 2/1

Alimentazione gas
GAS KITCHEN RANGE 4 BURNERS + GAS OVEN 2/1
900

GAS KITCHEN RANGE 4 BURNERS + GAS OVEN 2/1

Codice 92FEGMA

TOP, hermetically sealed cooking top made of stamped stainless steel with rounded corners for easier cleaning and improved hygiene.
HEATING by cast iron burners with double-ring brass flame spreaders. Cooking power of 2 x 6kW and 2 x 10kW (8kW optional) adjustable from maximum to minimum via ergonomic knob.
IGNITION with pilot flame.
SAFETY guaranteed by direct flame control via tap with thermocouple.
SUPPORT GRIDS in matte enamelled cast iron RAAF resistant to alkalis, acids and fire. Optional in stainless steel.
GAS OVEN
UNIT made of stainless steel with rounded corners to facilitate cleaning and hygiene. Door gasket applied to the body to ensure better heat retention inside the unit. Removable grid racks and bottom for easier cleaning.
HEATING with stainless steel burner with stabilized flame. Cooking power of 8kW with temperature adjustment via ergonomic knob.
SAFETY guaranteed by temperature control via thermostatic valve and safety limiter.
OVEN GRID, chromed, supplied.

Gas data
G20 (m³/h) 4,233
G30 (kg/h) 2,76
G31 (kg/h) 2,719
Technical data oven | top
Dimensions WxDxH (mm) 800 x 946 x 900
Oven dimensions WxDxH (mm) 696 x 565 x 290
Temperature control (°C) 60 - 280
Oven power (kW) 8
Control EUROSIT 630
Burner data
Burner A 6 – 8 - 10
Burner B 10 – 6 - 8
Burner C 10 – 6 - 8
Burner D 6 – 8 - 10
Burner E - – -
Burner F - – -
Power 40 – -
