Alimentazione
gas
700

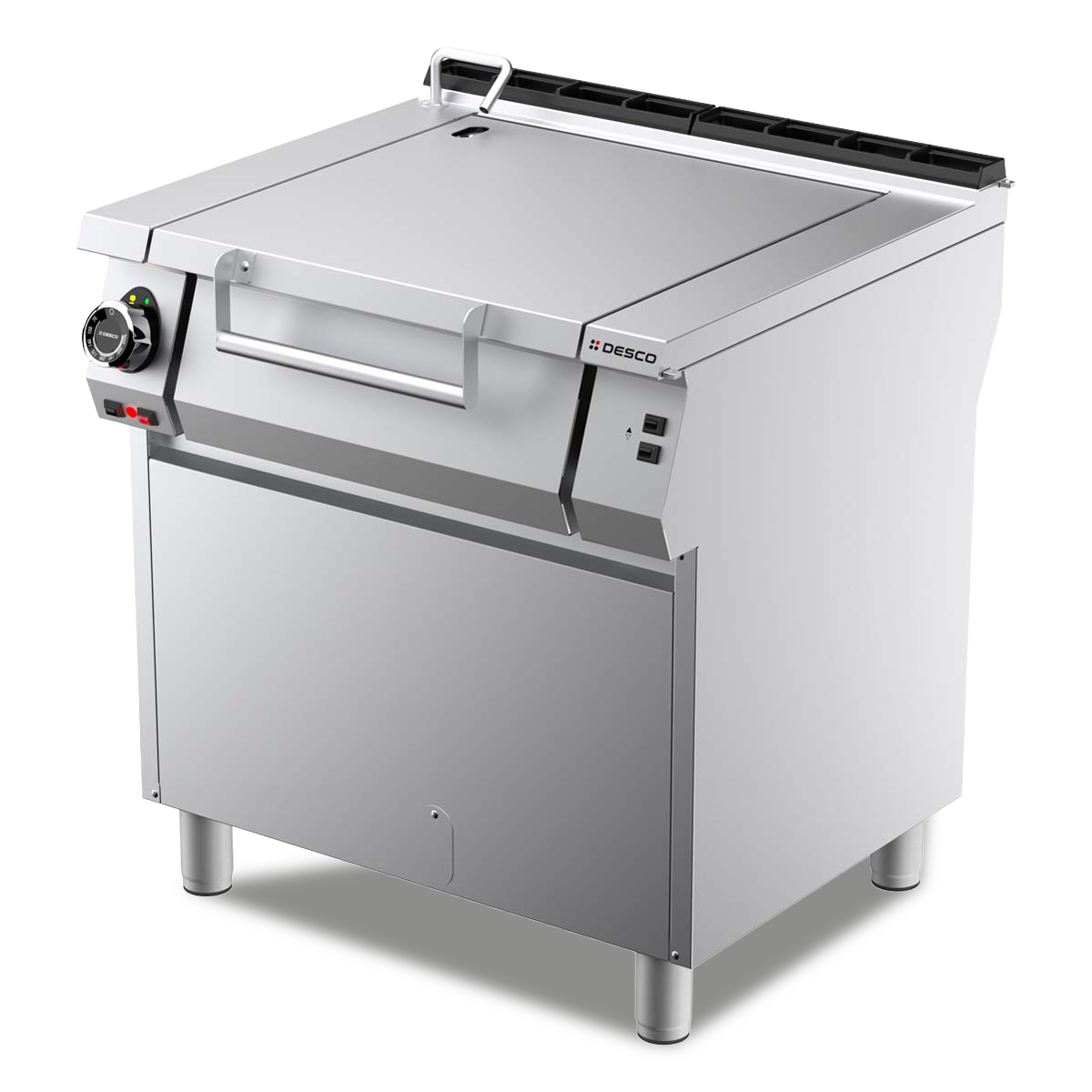

GAS BRATT PAN 50L
Codice
72BRGMA
TOP in stainless steel with flush-fitting lid. Spring-loaded lid for easy opening. Water filling via tap fixed to the top and operated by a dedicated button on the control panel.
TANK with rounded corners for easier cleaning and hygiene, stainless steel bottom. Electric tilting of the tank operated by dedicated buttons on the control panel. Tank capacity 50L.
HEATING by burner with cooking power of 14kW adjustable through switch and working thermostat. Ergonomic knob.
SAFETY guaranteed by temperature control via operating thermostat and manual reset temperature limiter.
| Gas data | |
|---|---|
| G20 (m³/h) | 1,481 |
| G30 (kg/h) | 1,104 |
| G31 (kg/h) | 1,088 |
| Technical data | |
|---|---|
| Dimensions WxDxH (mm) | 800 x 746 x 900 |
| Number of tanks | 1 |
| Tank dimensions WxDxH (mm) | 528 x 450 x 240 |
| Capacity (L) | 50 |
| Power (kW) | 14 |
| Electrical data | |
|---|---|
| Power (kW) | 1 |
| Power supply voltage (V) | 220-240V~ |
| Power frequency (Hz) | 50 / 60 |
| Absorption (A) | 4,5 |
