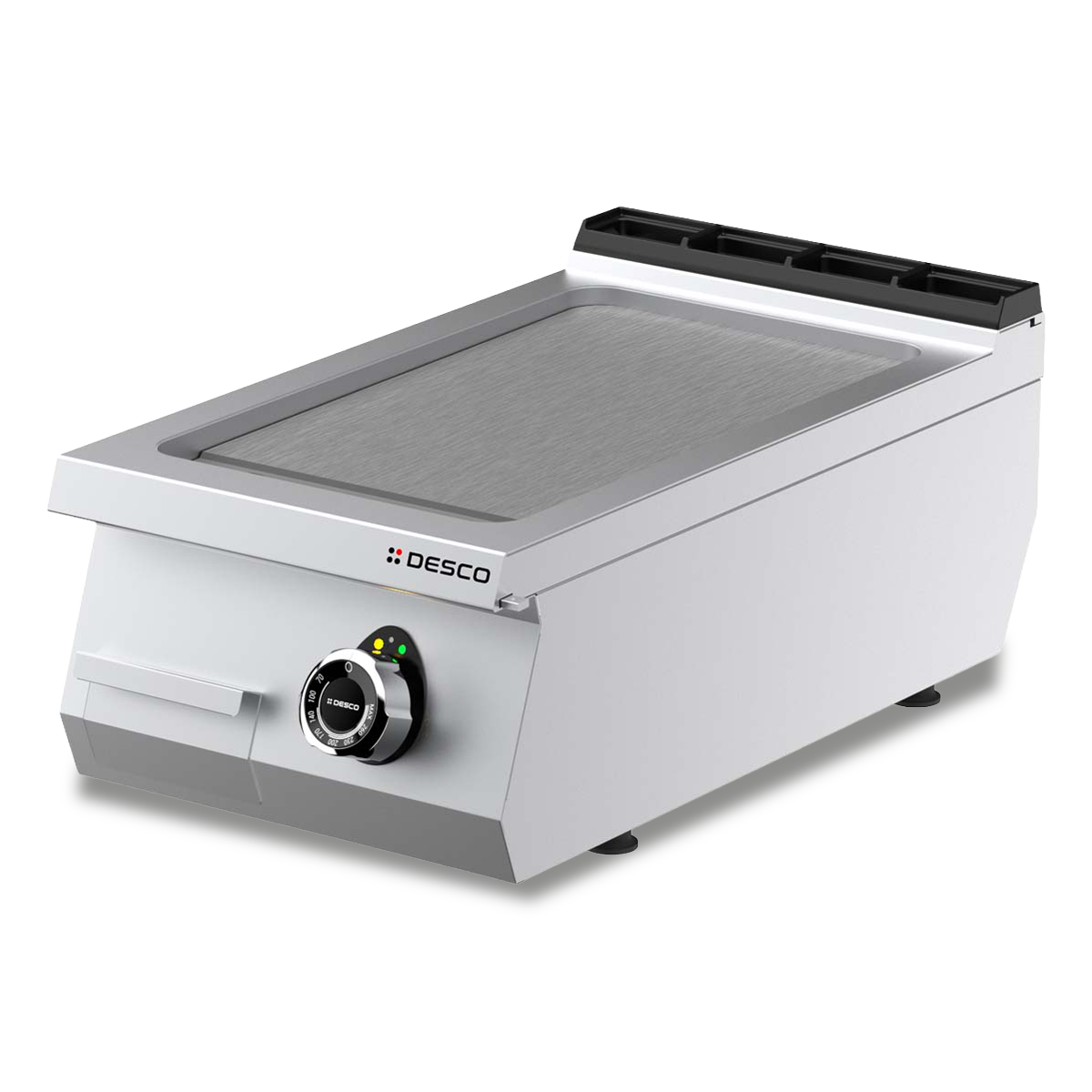

FRYTOP ELT TOP

Alimentazione ele

FRYTOP ELT TOP

Codice 71FTETA 71FTETB 71FTETC 71FTETD 71FTETA-62 71FTETB-62 71FTETC-62 71FTETD-62

PLATE smooth or ribbed cooking surface made of special ferritic alloy Fe 510 B, satin or satin chrome-plated finish, welded onto a stainless steel top.
HEATING by armored heating element with 5,4kW cooking power adjustable via selector switch and operating thermostat. Ergonomic knob. Separate controls for each cooking zone.
SAFETY guaranteed by temperature control via operating thermostat and manual reset safety thermostat.
EQUIPPED with removable drawer for grease collection and optional perimeter splash guard.

Technical data plate
Dimensions WxDxH (mm)	400 x 746 x 275
Plate dimensions WxD (mm)	320 x 560
Min – max temperature (°C)	70 - 300

Electrical data
Power (kW)	5,4
Power supply voltage (V)	380-415V 3N~
Power frequency (Hz)	50 - 60
Absorption (A)	7,8

Optional
Power supply voltage (V)	220-240V 3~
Power frequency (Hz)	50 - 60
Absorption (A)	13,6

Finish options
	piastra_liscia.jpg – piastra_liscia_cromata.jpg – piastra_rigata.jpg – piastra_rig_crom.jpg
	71FTETA – 71FTETB – 71FTETC – 71FTETD
