Alimentazione
ele
700

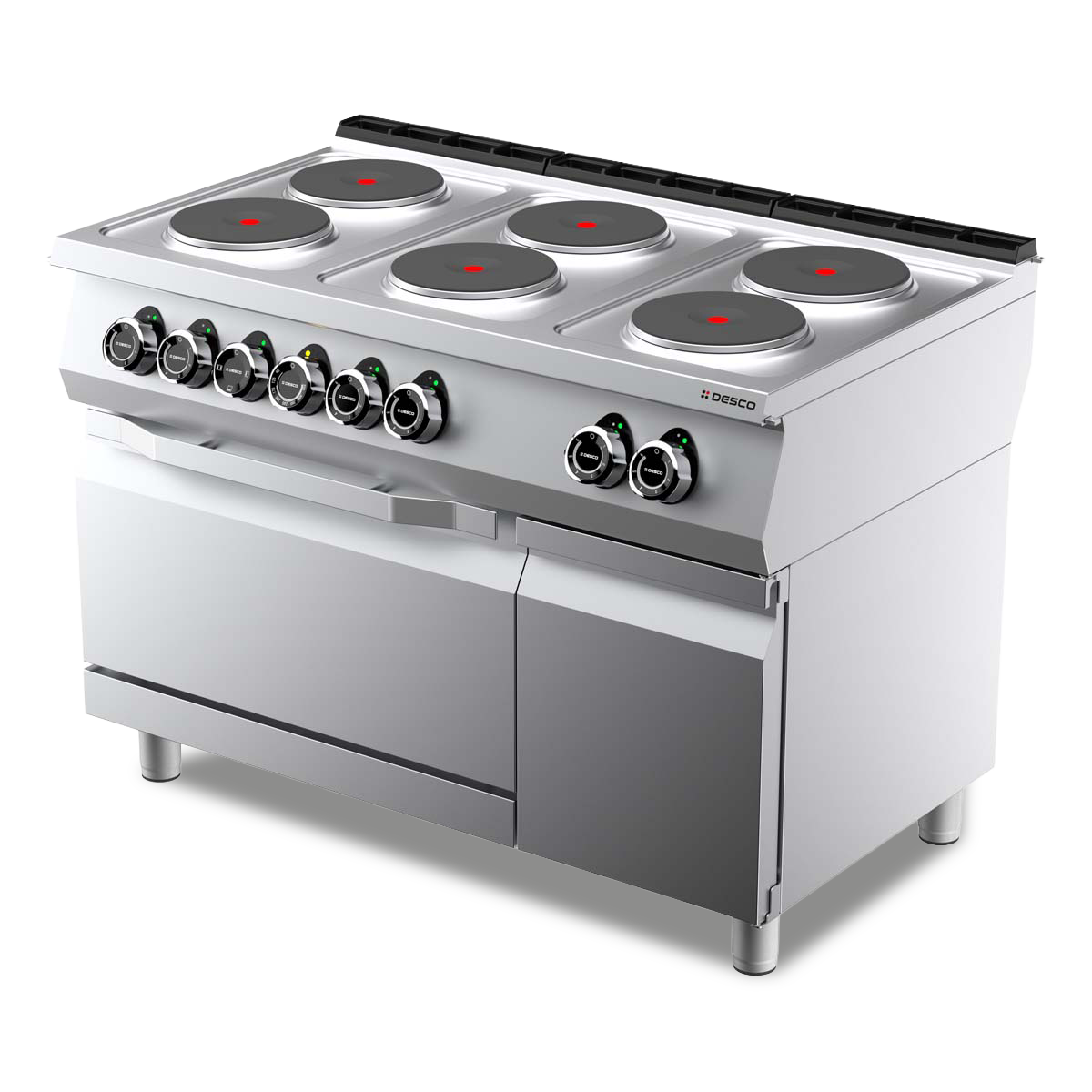

ELT KITCHEN RANGE 6P + ELT OVEN 2/1
Codice
73PEEMA
73PEEMA-62
TOP, hermetically sealed cooking top made of stamped stainless steel with rounded corners for easier cleaning and improved hygiene.
HEATING with 6 cast iron plates Ø220. Cooking power of 6 x 2,6kW adjustable via 6-position switch and ergonomic knob. Separate controls for each plate.
SAFETY guaranteed by integrated thermal protection in the plates.
ELECTRICAL OVEN
UNIT made of stainless steel with rounded corners to facilitate cleaning and hygiene. Door gasket applied to the body to ensure better heat retention inside the unit. Removable grid racks and bottom for easier cleaning.
HEATING with upper and lower heating element.
SAFETY guaranteed by temperature control via operating thermostat and safety limiter.
OVEN GRID, chromed, supplied.
| Technical data oven | top | |
|---|---|
| Dimensions WxDxH (mm) | 1200 x 746 x 900 |
| Oven dimensions WxDxH (mm) | 696 x 565 x 290 |
| Temperature control (°C) | 90 - 330 |
| Oven power (kW) | 5,4 |
| Plate dimensions (mm) | 220 (x6) |
| Plate power (kW) | 2,6 (x6) |
| Electrical data | |
|---|---|
| Power (kW) | 10,6 + 10,4 |
| Power supply voltage (V) | 380-415V 3N~ |
| Power frequency (Hz) | 50 - 60 |
| Absorption (A) | 22,6 + 22,6 |
| Optional | |
|---|---|
| Power supply voltage (V) | 220-240V 3N~ |
| Power frequency (Hz) | 50 - 60 |
| Absorption (A) | 33,3 + 30 |
