Alimentazione
gas
600

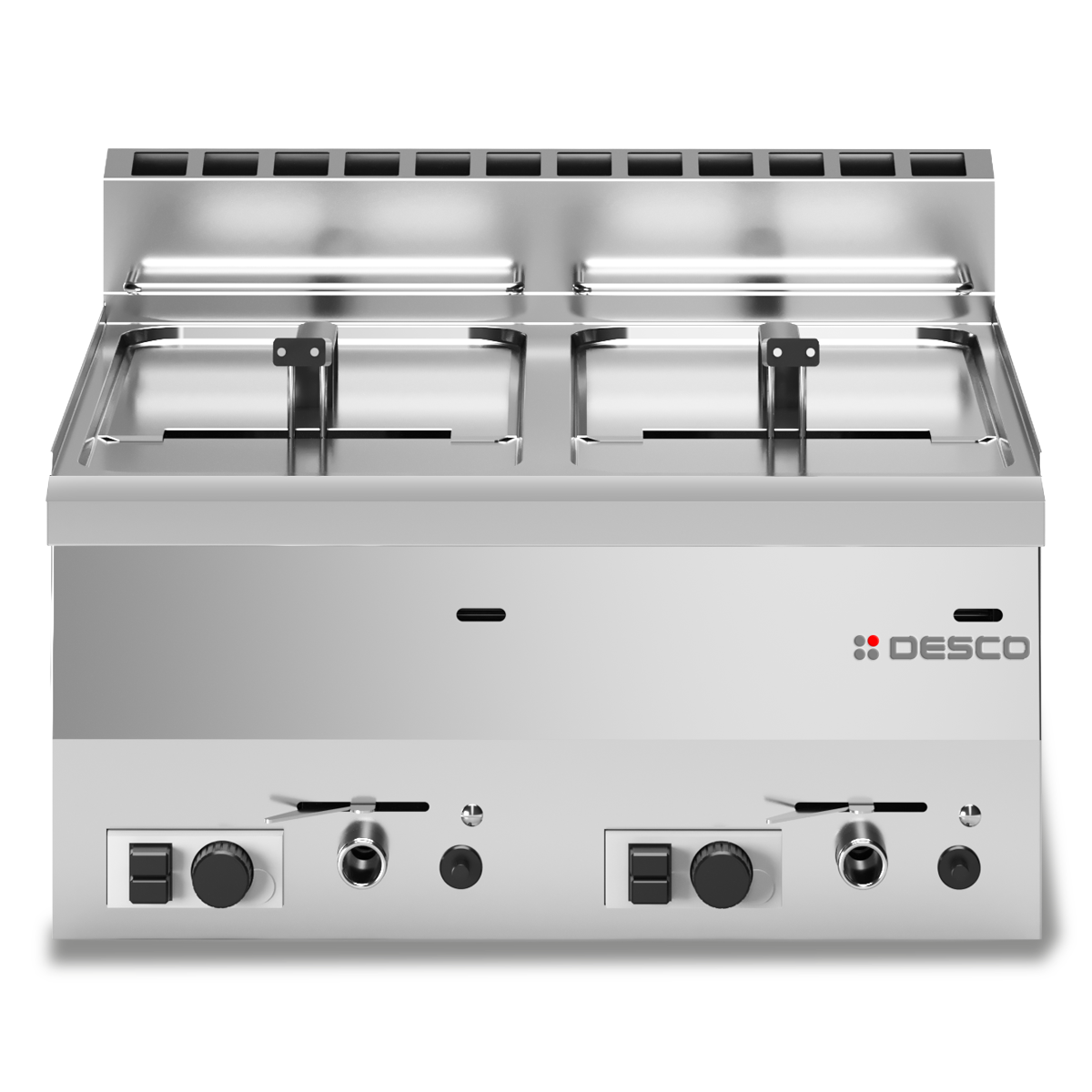

8+8L GAS FRYER TOP
Codice
62FRG
TOP and tank made of AISI 304 stainless steel, 8/10 mm thick. Equipped with a drain tap located on the control panel and a safety-fit bend for oil drainage from the tank.
HEATING direct via stainless steel burners with horizontal flame with total power of 13,6kW with pilot burner and piezoelectric ignition. Gas supply via safety thermostatic valve with thermocouple; safety thermostat.
KNOBS made of a robust heat-resistant polymer compound in red color.
GAS KIT for conversion to natural gas 30/50 mbar (tested with natural gas).
EQUIPPED with 2 GN 1/1 baskets with thermoplastic handle and lids, 2 tank filters and 1 oil drain extension.
| Gas data | |
|---|---|
| Total gas power (kW) | 13,6 |
| Total gas power (kcal/h) | 11694 |
| Gas connection (inches) | 1/2“ |
| Technical data | |
|---|---|
| Dimensions WxDxH (mm) | 600 x 600 x 300 |
| Number of tanks | 2 |
| Tank dimensions WxDxH (mm) | 247 x 300 x 210 (x2) |
| Tank capacity (L) | 8 + 8 |
