Alimentazione
gas
700

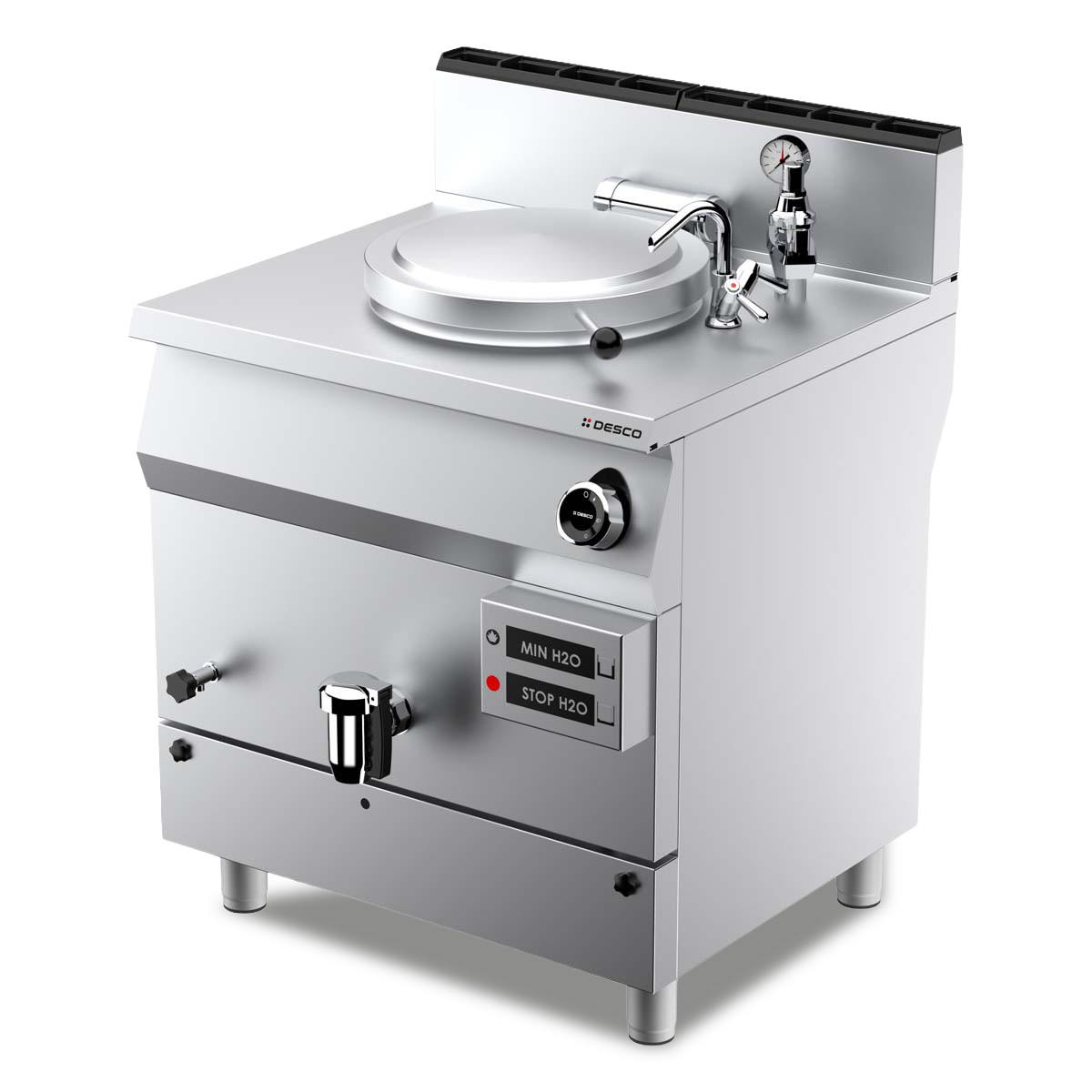

55L INDIRECT HEATING BOILING PAN
Codice
72PNGMA
TANK, cylindrical cooking, 55 liters with AISI 316 bottom and AISI 304 walls. Supporting structure in stainless steel and external cladding in finely satin-finished AISI 304. Adjustable AISI 304 stainless steel feet for leveling. Spring-loaded lid for easy opening and equipped with an athermic handle.
HEATING indirect.
MIXER TAP (hot/cold water) for tank filling. Temperature adjustment with min/max tap. Front tap for interspace level control and tank drainage.
SAFETY guaranteed by heating cut-off in case of overheating with manual reset safety thermostat. Interspace safety valve at 0,5 bar. Interspace vacuum valve.
| Gas data | |
|---|---|
| Gas connection (G) | Ø 1/2” ISO R7 |
| Gas power (kW) | 15,5 |
| Technical data | |
|---|---|
| Dimensions WxDxH (mm) | 800 x 700 x 1100 |
| Number of tanks | 1 |
| Tank diameter (mm) | Ø 400 |
| Tank height (mm) | 475 |
| Capacity (L) | 55 |
| Heating | indirect |
| Net weight (kg) | 105 |
| Water connection | |
|---|---|
| Water pressure (kPa) | 50÷300 |
| Cold water (B) | Ø 10 mm |
| Hot water (A) | Ø 10 mm |
