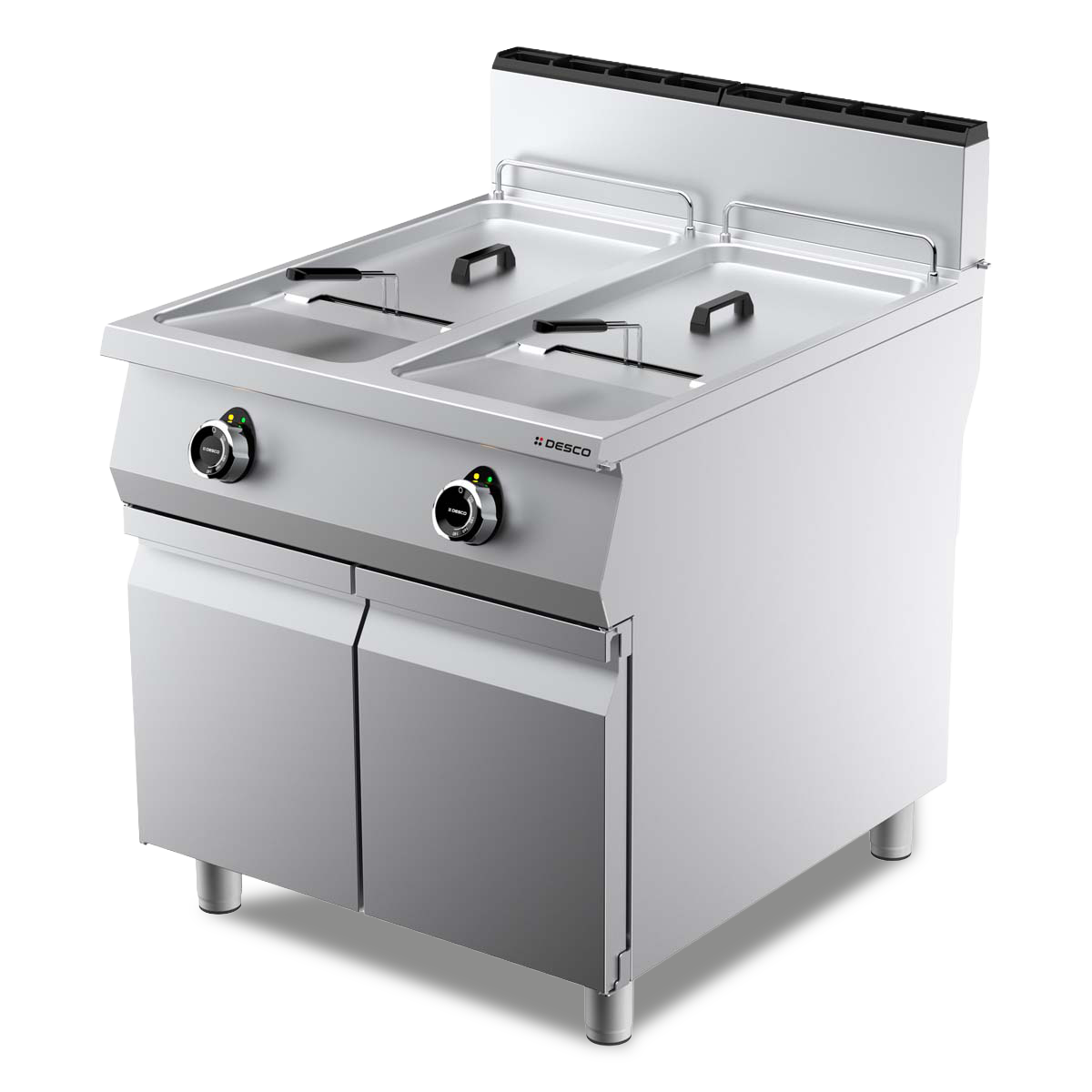

21+21L GAS FRYER
Codice
92FRGMB
92FRGMB-60
TOP with deep-drawn AISI 304 stainless steel tanks with rounded edges for easier cleaning and wide foaming area.
HEATING by two pairs of burners external to the tanks with total power of 38kW, adjustable through SIT 820 valves. Internal tank temperature adjustable via working thermostat and ergonomic knob.
IGNITION with electronic igniter.
SAFETY guaranteed by flame control via SIT 820 valve, operating thermostat and safety thermostat.
EQUIPMENT including filter, basket, tank lid and oil collection tray.
| Gas data | |
|---|---|
| G20 (m³/h) | 4,021 |
| G30 (kg/h) | 2,997 |
| G31 (kg/h) | 2,952 |
| Power (kW) | 38 |
| Specific power (W/L) | 905 |
| Technical data | |
|---|---|
| Dimensions WxDxH (mm) | 800 x 946 x 900 |
| Min – max temperature (°C) | 90 - 190 |
| Number of tanks | 2 |
| Tank dimensions (mm) | 227 x 444 x 335 (x2) |
| Tank capacity (L) | 18 / 21 + 18 / 21 |
| Control | SIT 820 |
| Electrical data | |
|---|---|
| Power supply voltage (V) | 220-240V 1N~ |
| Power frequency (Hz) | 50 |
| Optional | |
|---|---|
| Power supply voltage (V) | 220-240V 1N~ |
| Power frequency (Hz) | 60 |
