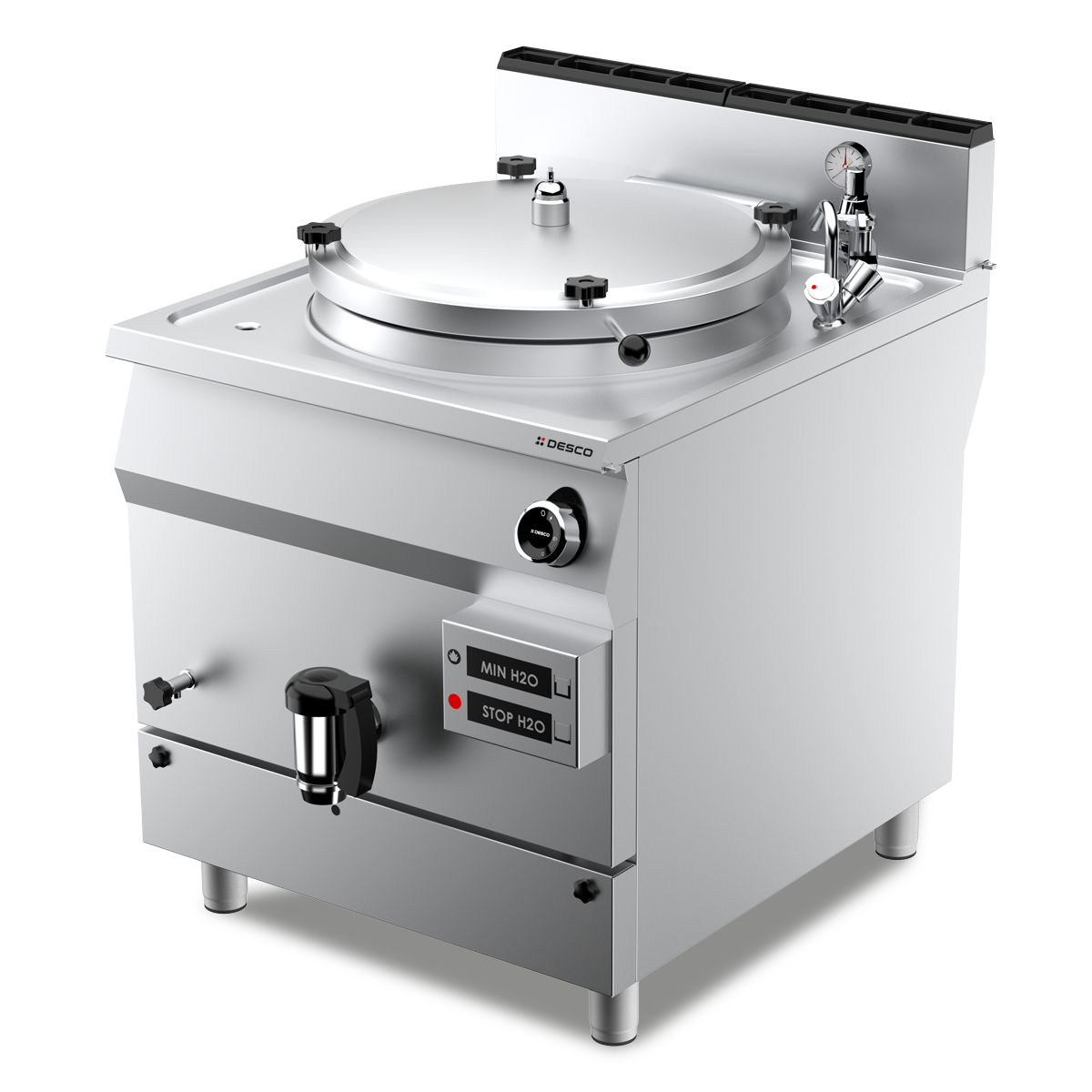

139L INDIRECT HEATING BOILING PAN

139L INDIRECT HEATING BOILING PAN

Alimentazione gas
139L INDIRECT HEATING BOILING PAN
900

139L INDIRECT HEATING BOILING PAN

Codice 92PNGMD

TANK, cylindrical cooking, 139 liters with AISI 316 bottom and AISI 304 walls. Supporting structure in stainless steel and external cladding in finely satin-finished AISI 304. Adjustable AISI 304 stainless steel feet for leveling. Spring-loaded lid for easy opening and equipped with an athermic handle.
HEATING indirect. Pressure cooking at 0,05 bar via airtight lid closure with clamp system.
MIXER TAP (hot/cold water) for tank filling. Temperature adjustment with min/max tap. Front tap for interspace level control and tank drainage.
SAFETY guaranteed by heating cut-off in case of overheating with manual reset safety thermostat. Interspace safety valve at 0,5 bar. Lid safety valve calibrated at 0,05 bar. Interspace vacuum valve.

Gas data
Gas connection (G) Ø 1/2” ISO R7
Gas power (kW) 21
Technical data
Dimensions WxDxH (mm) 800 x 900 x 1110
Number of tanks 1
Tank diameter (mm) Ø 600
Tank height (mm) 540
Capacity (L) 139
Heating indirect
Autoclave pressure (bar) 0,05
Net weight (kg) 150
Water connection
Water pressure (kPa) 50÷300
Cold water (B) Ø 10 mm
Hot water (A) Ø 10 mm
