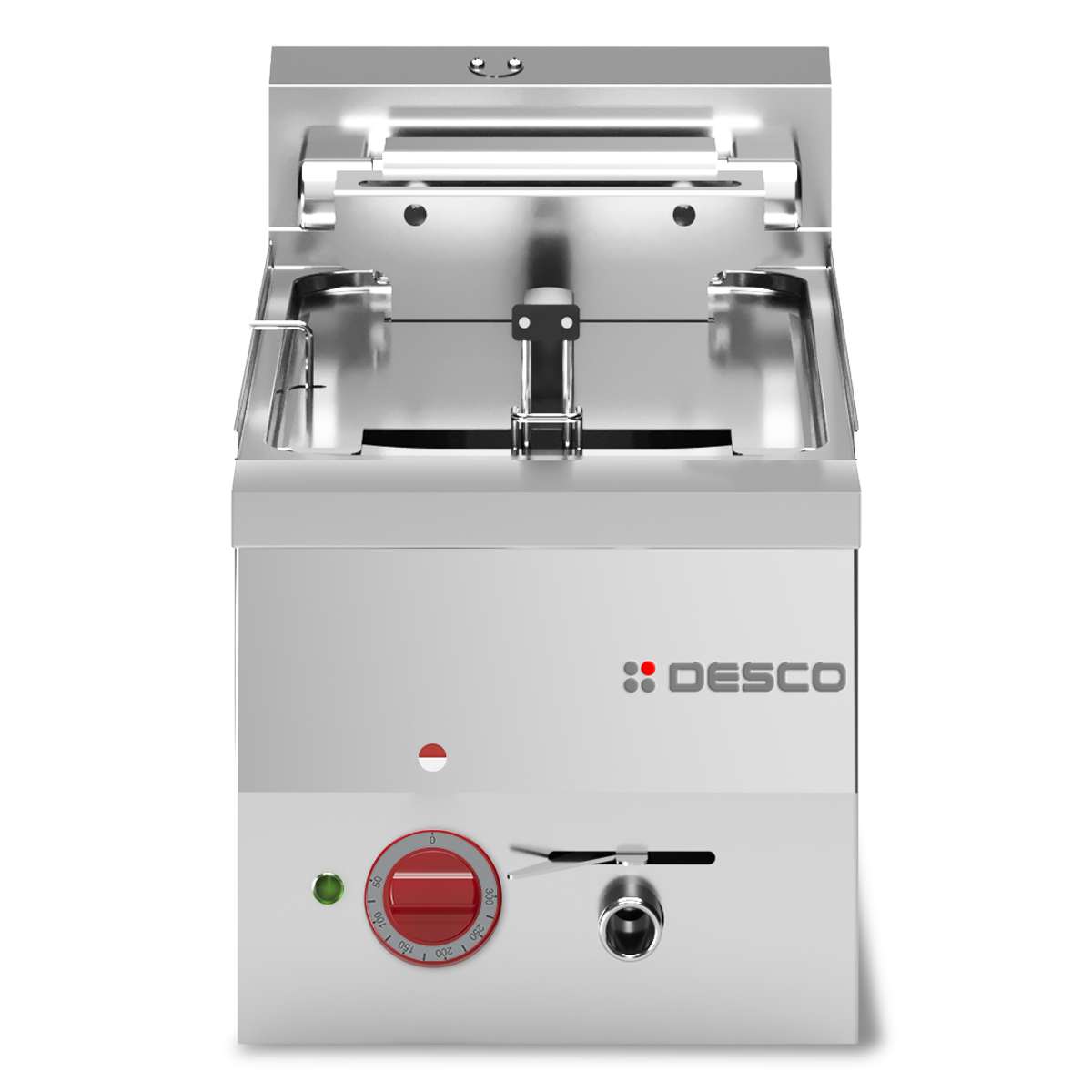

10L ELT FRYER TOP
Codice
61FRE
TOP and tank made of AISI 304 stainless steel, 8/10 mm thick. Equipped with a drain tap located on the control panel and a safety-fit bend for oil drainage from the tank.
HEATING direct via tilting armored heating elements for cleaning with total power of 7,5kW, controlled by a thermostat with operating range from 100°C to 190°C, main switch, safety thermostat and indicator lamps for correct operation.
KNOB made of a robust heat-resistant polymer compound in red color.
EQUIPPED with 1 GN 1/1 basket with thermoplastic handle and lid, 1 tank filter and 1 oil drain extension.
| Technical data | |
|---|---|
| Dimensions WxDxH (mm) | 300 x 600 x 300 |
| Number of tanks | 1 |
| Tank dimensions WxDxH (mm) | 244 x 364 x 169 |
| Tank capacity (L) | 10 |
| Electrical data | |
|---|---|
| Power (kW) | 7,5 |
| Power supply voltage (V) | 380-415V 3N~ |
| Power frequency (Hz) | 50 - 60 |
| Absorption (A) | 11,5 |
| Cable cross-section (mmq) | 5G2,5 |
