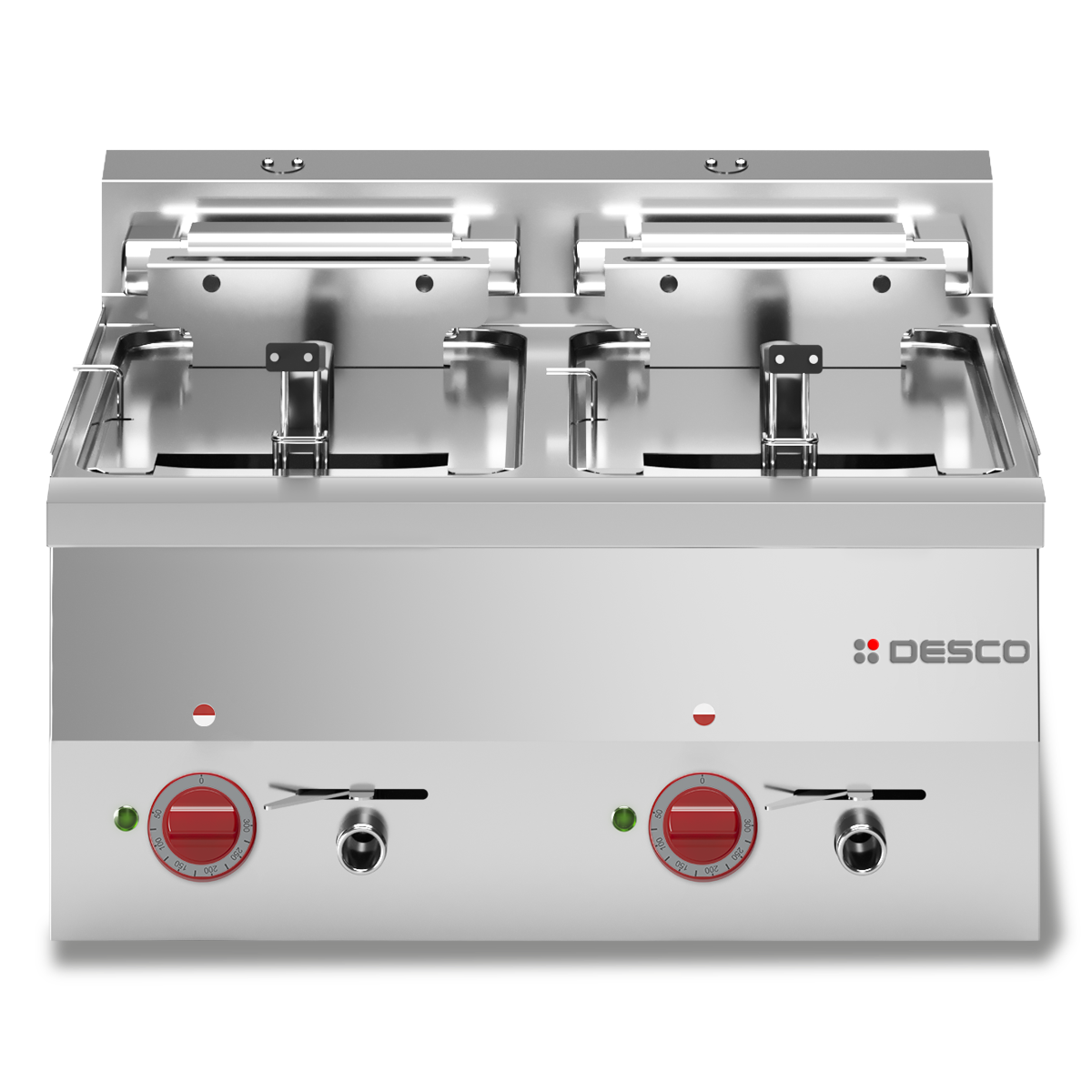

10+10L ELT FRYER TOP

10+10L ELT FRYER TOP

Alimentazione ele
10+10L ELT FRYER TOP
600

10+10L ELT FRYER TOP

Codice 62FRE

TOP and tanks made of AISI 304 stainless steel, 8/10 mm thick. Equipped with a drain tap located on the control panel and a safety-fit bend for oil drainage from the tank.
HEATING direct via tilting armored heating elements for cleaning with total power of 15kW, controlled by a thermostat with operating range from 100°C to 190°C, main switch, safety thermostat and indicator lamps for correct operation.
KNOBS made of a robust heat-resistant polymer compound in red color.
EQUIPPED with 2 GN 1/1 baskets with thermoplastic handle and lids, 2 tank filters and 1 oil drain extension.

Technical data
Dimensions WxDxH (mm) 600 x 600 x 300
Number of tanks 2
Tank dimensions WxDxH (mm) 244 x 364 x 169 (x2)
Tank capacity (L) 10 + 10
Electrical data
Power (kW) 15
Power supply voltage (V) 380-415V 3N~
Power frequency (Hz) 50 - 60
Absorption (A) 23
Cable cross-section (mmq) 5G4
